Low - wash - Passenger trimaran -
Trimarano a basso pescaggio per trasporto passeggeri -
1 - Full lenght / Longueur hors tout / Lunghezza f.t....(L.O.A.). mt 7,50 -25'-
2 - Hull lenght / Longueur de la coque / Lunghezza scafo ....mt 7,00 -23'
3 - Beam / Largeur / Larghezza ........................................mt 3,0
4 - Draft - Pescaggio ..............................mt 0,30 - 0,50 - 1' / 2'
5 - Passenger load / Charge max. de personnes /
Passeggeri...n. 30 / 31
6a- Construction material :....................marine steel or aluminium
6b- Material de construction:..................acier marine ou aluminium
6c- Materiale di costruzione:..................acciaio oppure Alluminio
7 - Colour / Coleur / Colore - Standard - :..... White / Blanc / Bianco
8 - Keel / Carène / Carena : ........................Trimaran - Trimarano
9 - Fuel Tank / Réservoir carburant / Serbatoio carburante:
not included - pas compris - non compreso -
10 -Max Engine/s Power - Motorisation max. - Massima motorizzazione:
n. 2 x HP 35 outboard. / n. 1 70 HP Extra Long
11 - Crew / Equipage / Equipaggio:......................n. 1
12 - Pric - Click on:
13 - Special video link kit
Testo in Italiano: clicca su:
Il kit a GPL
English text: click on:
LPG System for boat engines
French Text - Cliquez:
Le GPL marine pour la plaisance et les utilisations professionnelles

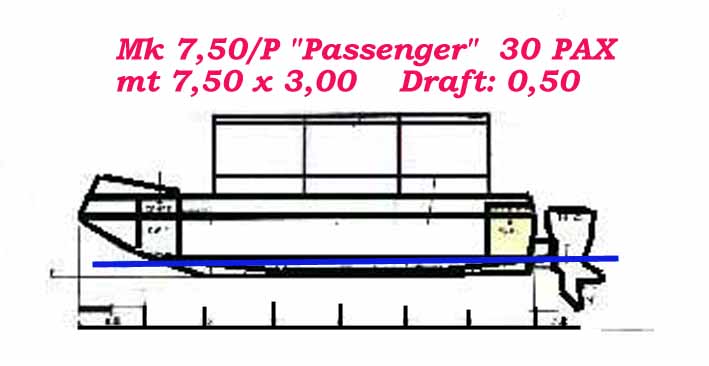

Midship section - section longitudinale - Sezione di maestra

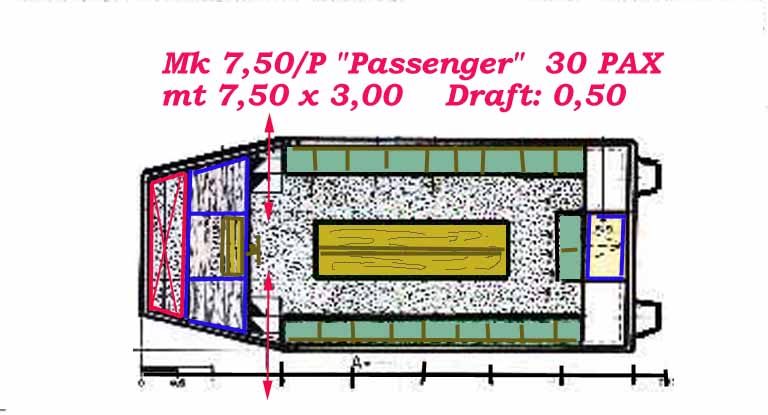

Main deck view - Vue du pont principal - Vista ponte principale -

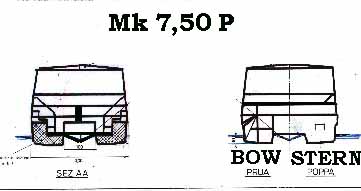

Cross Section - Section Transversale - Sezione Trasversale-

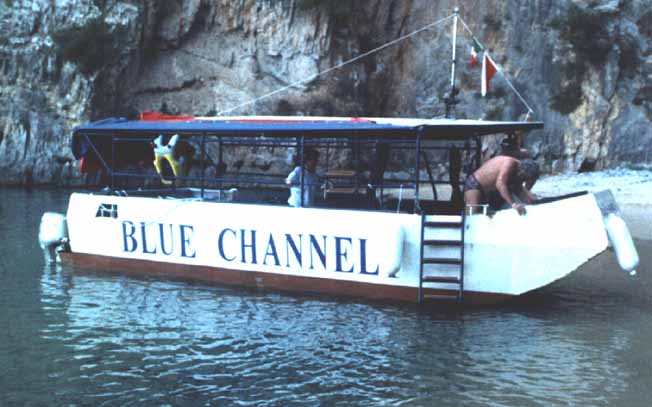

Picture - operative unit - lateral view
Picture - operative unit - View-on-Bow
