Riflttore Radar ad Alta Energia - Uso Navale -

herf-01.html - April 18th, 1998. - ( 22.1 )
Updated: Thurs. 8 June 2000/12 Luglio 2007

- HIGH ENERGY RADAR REFLECTOR - MARITIME APPLICATIONS -
1973-1974
MARITIME APPLICATION.
All maritime IALA operations.

SPECIFICATION -
Diamater: 540 mm - 21"
Height: 200 mm - 8"' -
Weight in air: 10 Kg - 20 lbs.
Constructon material: stainless steel.

Reflection system:
by No.16 pyramidal elements composed of 6 dipoles each.
Dipoles length: 8" approx.

Pictures
- Cod.22.1

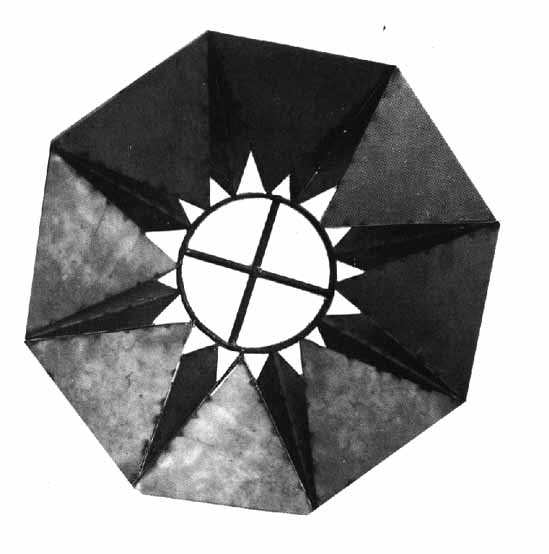

Top View - Picture -

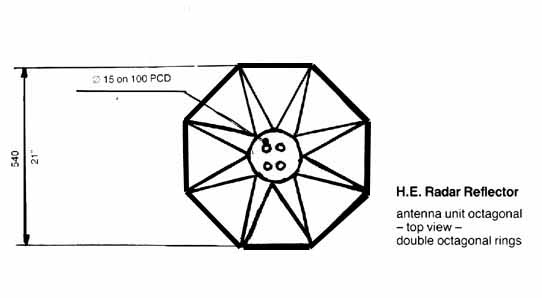

Top View - Sketch -

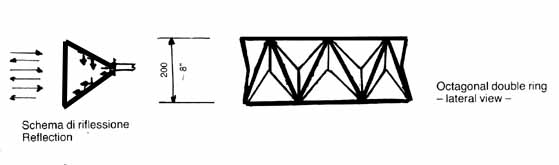

Lateral View - Sketch -
