ref: jeep-01.html - Amended April 2000 - /12 Luglio 2007cod. 21.-
1 - L.O.A.
- Longueur hors tout / Lunghezza f.t... mt 7,80 - 26' -
2 - Hull length
- Longueur de la coque / Lunghezza scafo ..mt 6,00 - 20' -
3 - Beam
- Largeur / Larghezza . : mt 3,00 - 10' -
4 - Draft
- Tirant d'eau - Pescaggio :
at rest - au quai - al molo - : mt 0,60 - 0,90 - 2' / 3' related to cargo weight.
at speed - en navigation - in navigazione : mt 0,30 - 1' approx.
5 - Freeboard (summer /winter)
- Bordo Libero - : mt 0,60 - 2'- approx.-
6 - CARGO CAPACITY:
6.1 - Stern side platform size : mt 3 x 1,50 ( 10' x 5')
6.2 - Platform max. loading capacity: 200 Kg - 400 Lbs.
7 - Accomodation.
7.1 - Crew : 2 seats.
7.2 - Squad - Escouade - Squadra : 6 seats -
8 - Construction material
- Matériau de construction - Mat. costruzione
marine grade aluminium -
9 - Weight
- Poids - Peso
In air - Empty - approx. - Poids de la coque - Peso Scafo Kg. 1,000 - 3,000 Lbs .
Fully Equipped - approx. - Poids brut ( en plein charge ) - Peso a.p.c. Kg.3,500 - 7,000 Lbs.
10 - Colour
- Coleur / Colore -
Standard - : Navy Gray - Camouflage by request.
11 - Keel
- Carène / Carena
Special Trihedral-hull - Trimarano a profilo speciale.
12 - Fuel Tank
- Réservoir carburant / Serbatoio carburante
Tot.: 600 lt - 156 US Gallon -# 2 x 300 lt - ( 78 US Gallon )
Fuel Capacity - Réservoir - Capacita' serbatoi : 600 lt - 156 gal.
13 - Engines
- Motorisation - motorizzazione installata:
No. 2 x HP 150 each Benzin stern drive.
Maker: VOLVO PENTA 3.0 GS SX - Standard -
No. 2 x HP 435 each Benzin stern drive.
Maker: VOLVO PENTA DP X 415 - High Speed - -
14 - Speed
- Vitesse - Velocita'
14.1 - Cruising speed - @ 100 % : 27 - 30 Kts. - Velocita' a.p.c.
14.2 - Cruising speed - @ 50 % : 30 - 35 Kts
14.3 - Top Speed @ 25 % : 35 - 38 Kts - Vitesse Maxime - Velocita' massima
14.4 - Top Speed @ 100% : 50 - 55 Kts - Vitesse Maxime - Velocita' massima
with # 2 x 435 HP each Volvo Penta benzin sterndrive type DP X 415
15 - CRUISING RANGE
- Distance franchissable - Distanxa max. percorribile:
15.1 - 270 nml min. - 400 nml Max. - 500 Km. min. - 740 Km. Max. - with # 2 x 150 HP
15.2 - 135 nml min. - 200 nml Max. - 250 Km. min. - 370 Km. Max. - with # 2 x 435 HP
15.3- Endurance - Autonomie - Autonomia : 10 - 12 h. with # 2 x 150 HP - 5 - 6 h. with # 2 x 435 HP
16 - Electronic Installation included
- Installations électroniques:
16.1 - VHF / FM radio Nihon MC - 7000 - 80 Channels.
16.2 - Radar - Koden MDC-450 - 0 - 32 nml range
16.3 - G.P.S. Koden KGP-98
16.4 - Echo Sounder / LORAN Koden CVL-11
16.5 - Compass - Fluxgate - Cetrek 550 / 580
16.4 - Night Vision & Compass KVH Datascope 5 x 30
17 - ELECTRIC -
- Installations électrique -
Battery: # 1 x 100 Amp - 12 Volt.
Standard navigation lights
# 2 spot light
Deck light
18 - OPTIONAL
18.1 - Chart Plotter Koden TDL-7G
18.2 - Electric Freezer Koolatron 42 lt.
18.3 - No. 3 Life Raft Eurovinil Coast - 4 places each.
18.4 - Combact light.
18.5 - Electric power generator
18.6 - PROBE, foreward scanning sonar
19 - SPECIAL INSTALLATION:
To be evaluated in relation to boat stability.
Max. extra loading capacity: 300 Kg - 600 Lbs.
20 - FLEXIBLE ACCOMODATION as:
20.1 - # 8 - 16 seats Tender.
20.2 - Diver's work boat
20.3 - Supply boat
20.4 - Rescue boat
20.5 - Pleasure craft

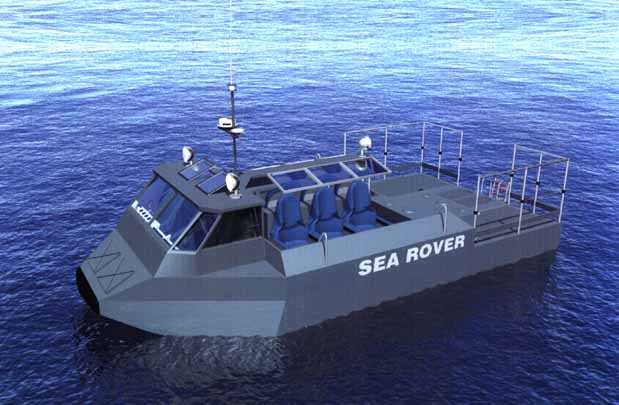

3 D Picture - Floating at rest - Vista tridimensionale - fermo in acqua -

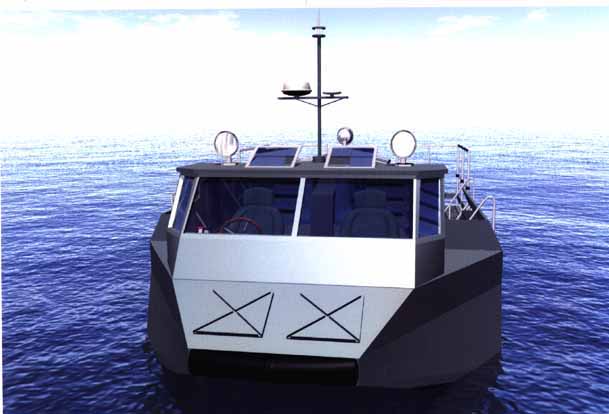

3 D Picture - View -on- Bow - Vista tridimensionale da prua -

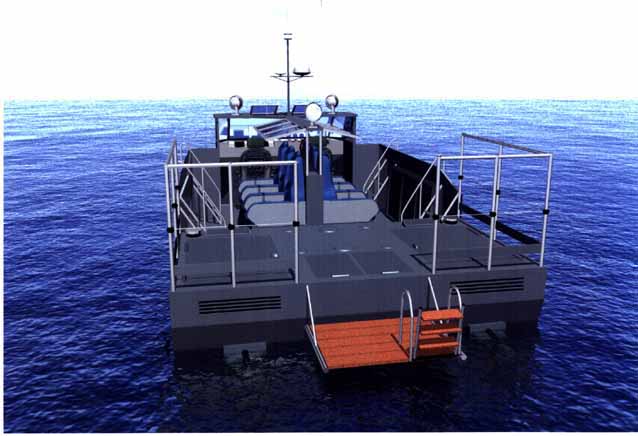

3 D Picture - View -on- Stern - Vista tridimensionale da poppa -

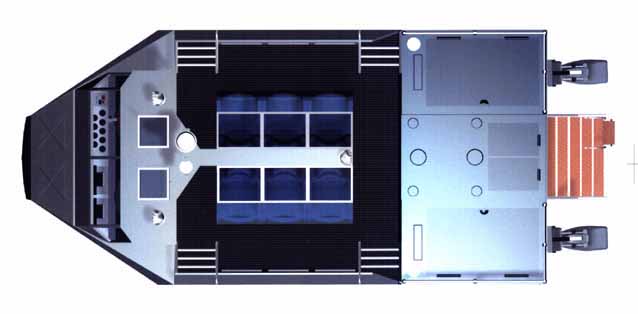

- Deck arrangement - - Sistemazione Ponte -

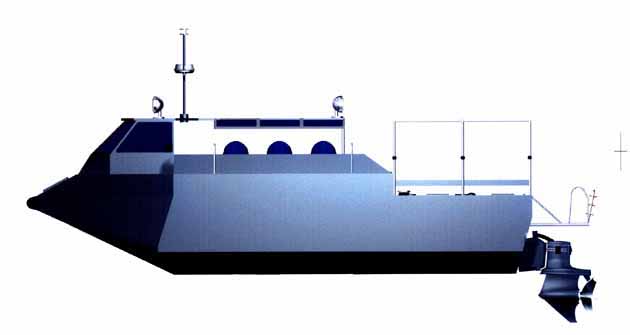

- Hull profile. - Profilo Scafo -

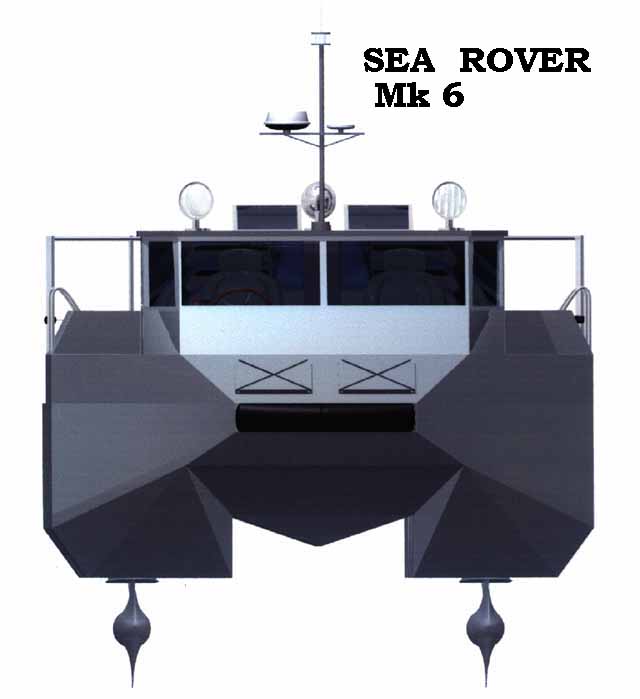

- Hull - View - on - bow - Scafo - Vista da prua - cod.28
