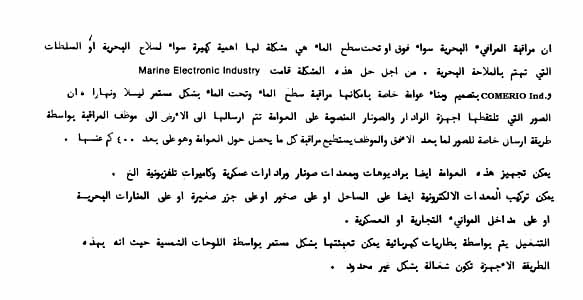

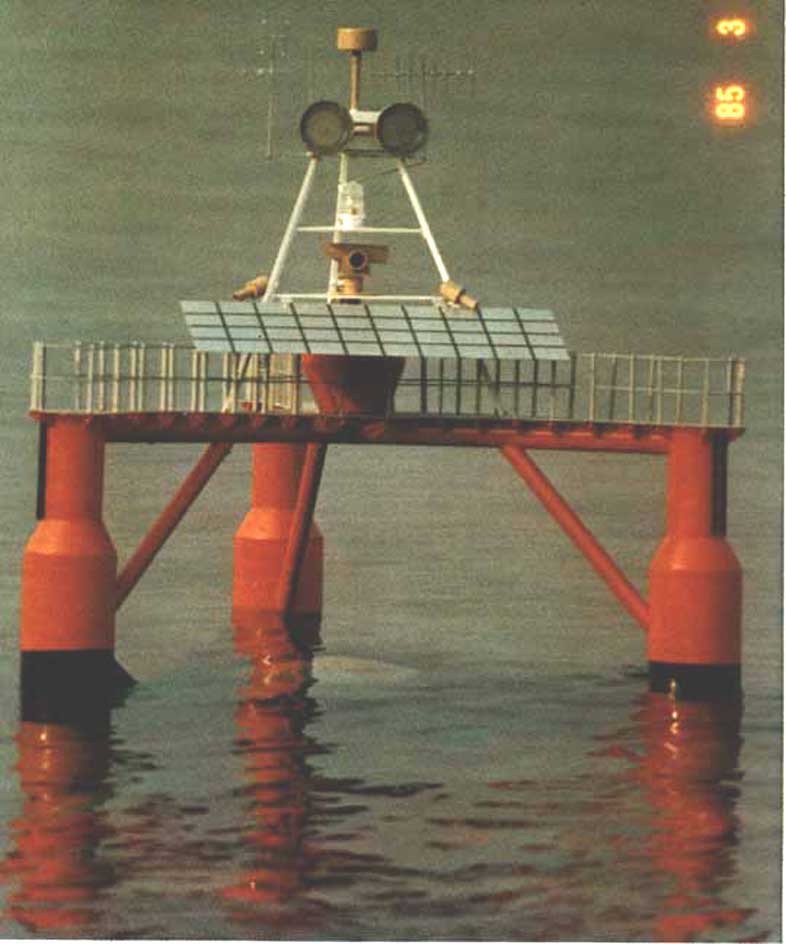

APPLICATIONS.
All maritime IALA operations.
Combined cardinal & lateral buoyage system.
Water monitoring
Intrusion's detection
Traffic control

SPECIFICATION -
L.O.A. 10 mt - 30' approx
Beam 10 mt - 30' - Max. external size -
Construction Height: 12 mt - 40' approx.
Floating capacity: 3,000 Kg - 6,000 lbs
Operating Displacement: 24,5 Ton - 49,000 Lbs.
Operating Sea-Status: 7
Survival Sea-state: 8 - 9
Minimum service period: 1 year
Light Range: 12 nml - White
Platform Design Life: 25 Years
Mooring Chains: # 3
Corrosion Protection: 5 Years

Focal Plane : 8 mt over water level - 26' approx.
Constructon material: steel.
Electronic box: marine steel

STANDARD EQUIPMENT - Included - High Energy radar reflector.
Day mark
6" lantern with bi-filament lamp.
No. 46 x 100 Amp. 12 Volt rechargeable sealed accumulator.
550 watt solar panels.( 12 sqmt surface )
n. 1 charge regulator.
Ballast: concrete .
Dead weight: related to stream Max. speed.

NAVIGATIONAL AIDS - OPTIONAL -
255 mm lens
300 mm lens
Beacon
Sound Signal
Hazardous Area Lighting System with a range of 15 nml.:
N. 2 14,000 candela when flashing Morse code "U"
n. 1 Control unit
Marker Beacon
Half-Mile Signal
Fog Signal
Two mile omnidiractional Sound Signal
Ominidirectional Pure Tone Signal
Directional Pure Tone Signal
# 4 - Place Automatic Lampcharger
# 6 - Place Automatic Lampcharger

OPTIONAL: METEREOLOGICAL SENSOR's LIST
Dew point
Solar Radiation
Tipping bucket rain gauge
Wind direction and speed
Temperature: min. / Max.
Fog density
Humidity
Pressure
etc. by request.

OPTIONAL: MARINE SENSORS LIST
Sea temperature
Stream: direction and speed
PH
REDOX
Temperature
Salinity
etc. by request.

OPTIONAL: ON-SURFACE SURVEILLANCE SENSORS LIST
Active Radar
LLLV TV with motorized Pan, Tilt, Zoom Lens
Radio Beacons
RACONS
RAMARKS
VOR
TRANSPONDER
NDB
ECM
ECCM
ELINT
TORAN
LORAN
etc.

OPTIONAL: UNDERWATER SURVEILLANCE SENSORS LIST
Active sonar
Hydrophone
Underwater beacon
etc.

DATA LINK
On board data processor unit.
Radio - Data - TV link - two way -
Main control station radio link : up to 5 buoys.

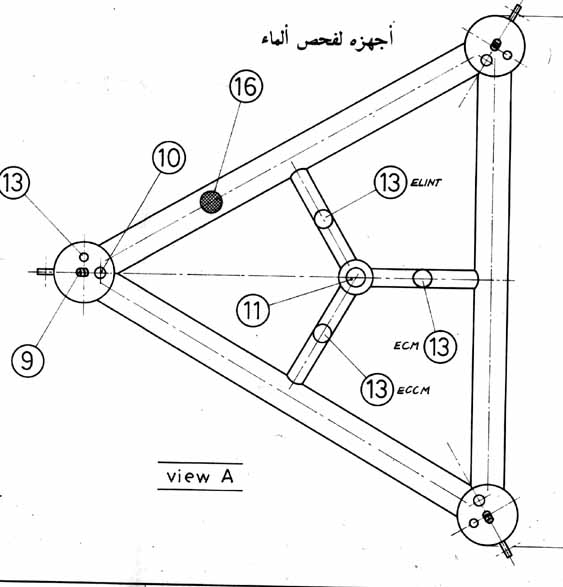

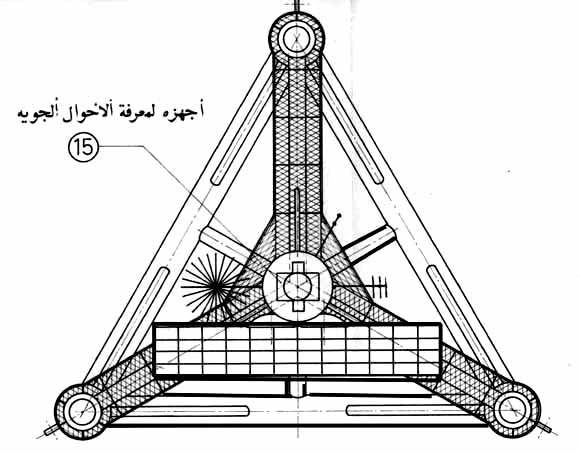

- Top View -

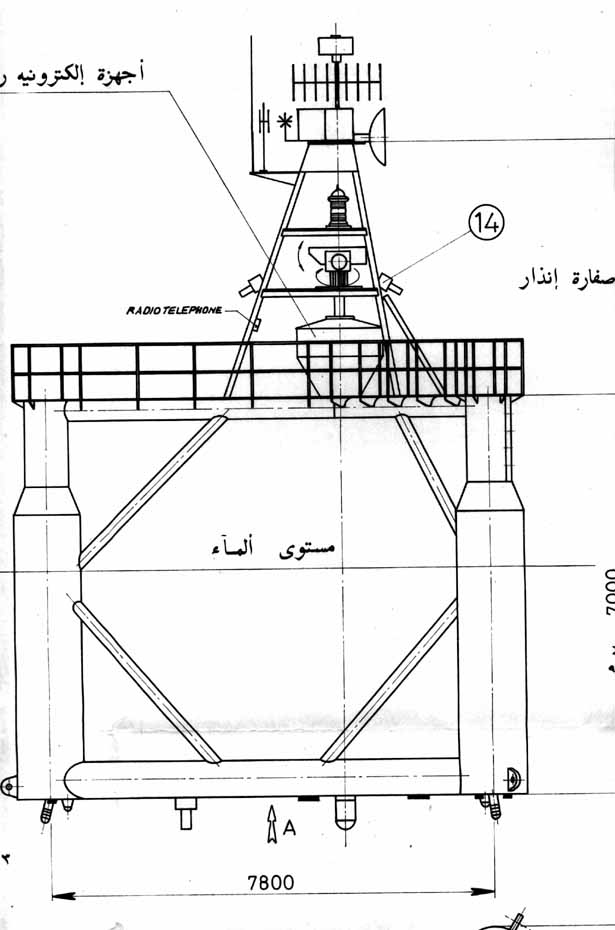

- Lateral View - - # 1 -

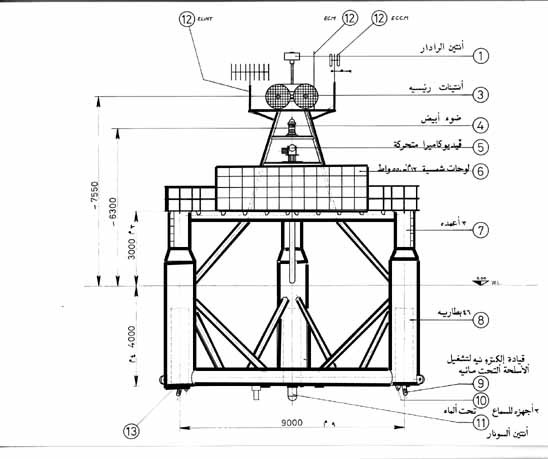

- Lateral View - - # 2 -

- U.W. Sensors - general arrangement -
