IALA Standard Open-Sea Buoy -
10'
- 1970-1972
APPLICATIONS.
All maritime IALA operations.
Combined cardinal & lateral buoyage system.
SPECIFICATION -
Diameter: 3 mt - 10'
Floating capacity: 2,500 Kg - 5,000 lbs
Weight in air: 3,300 Kg - 6,600 lbs.
Modular Ballast - 60 Lbs. Concrete Elements
Focal Plane : 3 mt over sea level - 10' approx.
Constructon material: steel.
Electronic box: marine steel
Positive Test: over 15 years operating in Italian waters.
STANDARD EQUIPMENT - Included -
High Energy radar reflector.
Day mark
6" lantern with bi-filament lamp.
100 Amp. 12 Volt rechargeable sealed accumulator.
n. 4 x 9 watt solar panels.
n. 1 charge regulator.
Ballast: No. 80 x 30 Kg.( 60 lbs) each. modular concrete elements.
Dead weight: 5,000 Kg - 10,000 lbs.
NAVIGATIONAL AIDS - OPTIONAL -
255 mm lens Lantern
300 mm lens Lantern
Beacon
Sound Signal
Hazardous Area Lighting System with a range of 15 nml.:
N. 2 x 14,000 candle when flashing Morse code "U"
n. 1 Control unit
Marker Beacon
Half-Mile Signal
Fog Signal
Two nmls omni diractional Sound Signal
Omini directional Pure Tone Signal
Directional Pure Tone Signal
# 4 - Place Automatic Lamp charger
# 6 - Place Automatic Lamp charger
OPTIONAL: METEREOLOGICAL SENSORS LIST
Dew point
Solar Radiation
Tipping bucket rain gauge
Wind direction and speed
Temperature: min. / Max.
Fog density
Humidity
Pressure
etc. on request.
OPTIONAL: MARINE SENSORS LIST
Sea temperature
Stream: direction and speed
PH
REDOX
Temperature
Salinity
etc. on request.
DATA LINK
On board data processor unit.
Radio link - two way -
Main control station radio link : up to 50 buoys.
MAIN REFERENCE LIST
Italy: IALA Standard
Egyptian Navy: IALA Standard
Ispra - European J.R.C. : Oceanic Data Collection Buoy
PICTURES
Cod.22.1

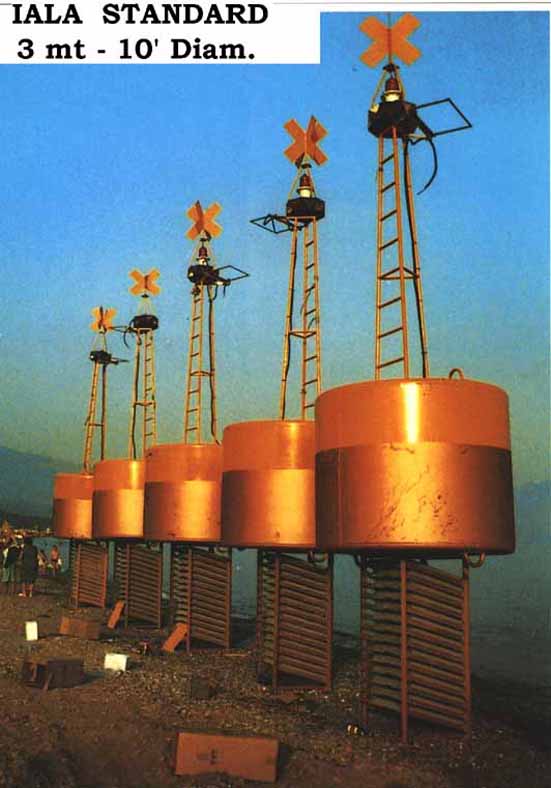

Buoys ready to be installed - South Italy location -
Main section

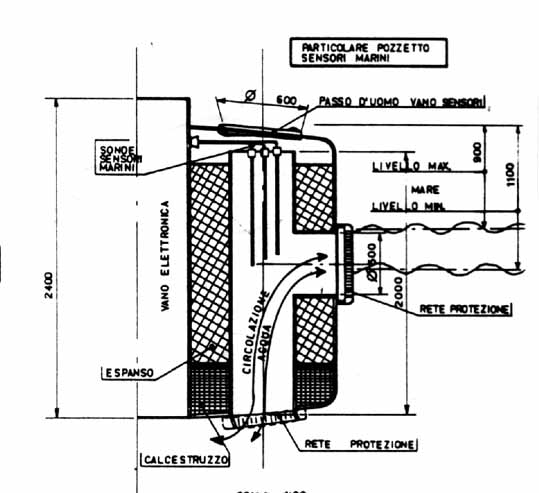

Sensors water intake - Compartment section
