ref:aq135-01.html - Amended 11 Luglio 2007 cod. 17
1 - Full length / Longueur hors tout / Lunghezza f.t....(L.O.A.). mt 15 - 50'-
2 - Hull length / Longueur de la coque / Lunghezza scafo ....mt 13,50 - 45'-
3 - Beam / Largeur / Larghezza ...........................: mt 4,20 - 14' -
4 - Draft - Pescaggio : mt 0,90 / 3' fully loaded - a pieno carico.
5 - Bordo libero - freeboard (summer /winter) : mt 0,90 - 3' -
6.1 - CRYSTAL: dimensions /dimensioni..Total vision surface dimension..mt 8 x 2,0 - 26,6' x 6,6' -
6.2 - Crystal: extra-strong type - 30 mm - 1" 1/4 -
7 - Passenger / Charge max. de personnes /
Passeggeri...n. 40
7a- Construction material :....................marine steel.
7b- Material de construction:..................acier marine.
7c- Materiale di costruzione:..................acciaio.
8 - Weight - Peso :...................... approx. 10,000 Kg. - 20,000 lbs.
9 - Colour / Coleur / Colore - Standard - :..... White / Blanc / Bianco
10 - Keel / Carène / Carena : .............Trimaran - Trimarano
11 - Fuel Tank / Réservoir carburant / Serbatoio carburante:
lt 600 x 2 Diesel - Tot.: 158 US Gallon -
12 - Engine/s Power - Motorisation max. - Massima motorizzazione:
n. 2 x 165 HP Mercruiser Diesel stern drive.
13 - Crew / Equipage / Equipaggio:......................n. 1 + 1
14.1 - Cruising speed - velocita' in visione : 0,5 knots.
14.2 - Max speed - velocita' massima : 9 knots 50% passengers.
15.1- Ship register: registro navale: A.B.S. or RINA -
15.2- Class: * 100 -A-1.1-Nav.Na.Lit. Motonave TP Navig. S.
16 - Authorized use ( by Italian Authority ) within 3 nml from the coast, 10 nml from safe mooring point, day and night cruise.
17 - Standard emergency equipment: all included.
18 - White water tank - serbatoio acque chiare : by request - a richiesta.
19 - Black water tank - serbatoio acque scure: by request - a richiesta.
20 - Stern side diver's platform - piattaforma di poppa: mt 4 x 1,50 - 13' 1/2 x 5'
21 - Canopy - tendalino : PVC - White / blue : included.
22 - W.C. - by request - a richiesta -
23 - Closed whellhouse - Plancia chiusa: by request- a richiesta-
25 - UNITA' IN NAVIGAZIONE - BOAT IN SERVICE - -.
No. 2 units - Malta -.

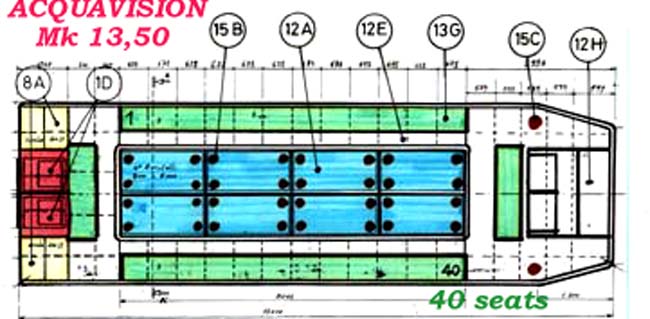

Main deck view - Vue du pont principal - Vista ponte principale -

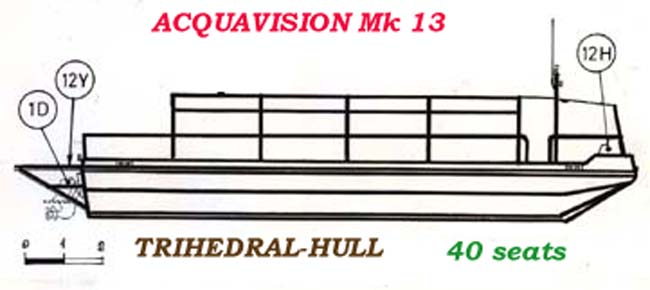

Vista da prora e da poppa - View-on-bow , View-on Stern
ACQUAVISION MK 4 - " mini "
seats: 10 -
Recommended engine: 15 HP Petrol or Electric
Type "A" - Steel grade hull.=
Type "B" - Aluminium grade hull
ACQUAVISION MK 512
seats: 12 -
Engine/s : outboard
ACQUAVISION MK 7.50
seats: 20 -
Engine/s: outboard
ACQUAVISION MK 9 mt
seats: 27 -
Engine/s : outbard or Sterndrive
ACQUAVISION MK 10
seats: 30 -
Engine: Sterndrive Diesel
ACQUAVISION MK 13.50
seats: 40 -
Engine: Sterndrive Diesel
ACQUAVISION MK 16.50
seats: 52 -
Engine: Sterndrive Diesel
ACQUAVISION MK 25/P
seats: 70 + 70 Upperdeck -
Engines: inboard diesel
ACQUAVISION MK 30 TRISTAR
seats: 150 + 150 Upperdeck + 18 Sundeck -
Engines: n.2 x 540 HP inboard
ACQUAVISION MK 35 TRISTAR
seats: 150 seats + 150 Upperdeck + 30 Sundeck -
Engines: n.2 x 540 HP inboard
