ACQUAVISION MK 9 - 30' -

cod.17

aq900-01.html Amended : 11 Luglio 2007 cod. 17.1

Updated: 2002, January 25th

MAIN SPECIFICATION - SPECIFICATIONS - CARATTERISTICHE GENERALI

- Fishwatching boat for night & day use -
- Barca per la visione subacquea per uso diurno e notturno.-
- Glass-bottom catamaran -
- Catamarano con fondo di cristallo -
TRIHEDRAL-HULL

1 - Full length / Longueur hors tout / Lunghezza f.t...(L.O.A.)... mt 9,50 - 31' -

2 - Hull length / Longueur de la coque / Lunghezza scafo ....mt 9,00 - 30'-

3 - Beam / Largeur / Larghezza ........................................mt 3,0 -10' -

4 - CRYSTAL: dimensions /dimensioni...............mt 4,50 x 1,0 - 15' x 3' 1/3.

5 - Passenger load / Charge max. de personnes / Passeggeri...n. 27.

6 - Construction material / Material / materiale di costruz.......marine steel / acier marine / acciaio

7 - Colour / Coleur / Colore - Standard - :..... White / Blanc / Bianco

8 - Keel / Carène / Carena : ........................Trimaran - Trimarano

9 - Fuel Tank / Réservoir carburant / Serbatoio carburante:
not included - pas compris - non compreso -

10 -Max Engine/s Power - Motorisation max. - Massima motorizzazione:
n. 2 x HP 25 outboard. Extra Long

11 - Crew / Equipage / Equipaggio:......................n. 1

PROULSIONE A GPL - LPG PROPULSION KIT - GPL MARINE

Testo in Italiano: clicca su:
Il kit a GPL

English text: click on:
LPG System for boat engines

French Text - Cliquez:
Le GPL marine pour la plaisance et les utilisations professionnelles

Sketch available - Plans Generaux - Piani Generali -

cod.1

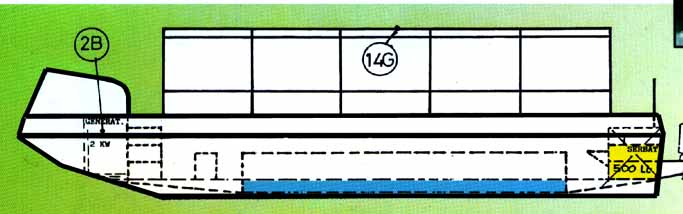

Midship section - section longitudinale - Sezione di maestra

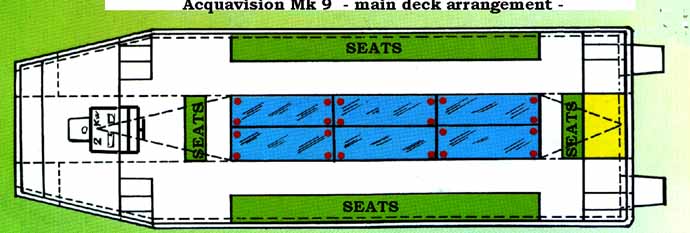

Main deck view - Vue du pont principal - Vista ponte principale -

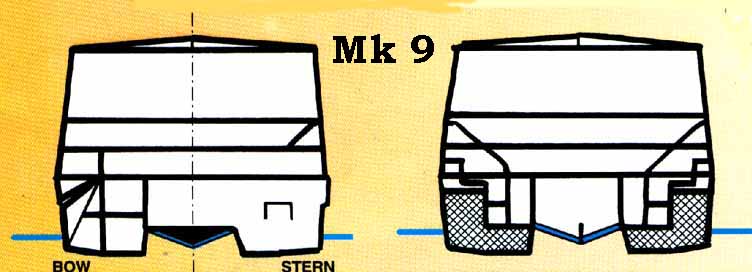

Cross Section - Section Transversale - Sezione Trasversale-

observation deck - - Fishwatching passenger's - picture - Foto passeggeri in visione-

Ship plan legenda
Legenda piani generali
