aq512-01.html - Amended 11 Luglio 2007 - cod. 17
1 - Full length / Longueur hors tout / Lunghezza f.t..(L.O.A.)... mt 5,50 - 18'
2 - Hull length / Longueur de la coque / Lunghezza scafo ....mt 5,00 - 16' 1/2
3 - Beam / Largeur / Larghezza ........................................mt 2,40 - 8'-
4 - CRYSTAL: dimensions /dimensioni..........................mt 2 x 0,9 - 6' 1/2 x 3' -
5 - Passenger load / Charge max. de
personnes / Passeggeri...n. 12
6a- Construction material :....................marine steel or aluminium
6b- Material de construction:..................acier marine ou aluminium
6c- Materiale di costruzione:..................acciaio oppure Alluminio
7 - Colour / Coleur / Colore - Standard - :..... White / Blanc / Bianco
8 - Keel / Carène / Carena : ........................Trimaran - Trimarano
9 - Fuel Tank / Réservoir carburant / Serbatoio carburante:
not included - pas compris - non compreso -
10 -Max Engine/s Power - Motorisation max. - Massima motorizzazione:
n. 2 x HP 25 outboard. Extra Long
11 - Canopy - Tendalino : White & Blue / Bianco e Blu : included - incluso.

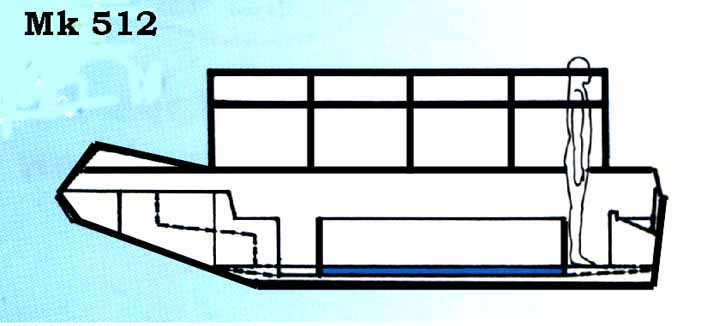

Lateral view - Vue latérale - Vista Laterale

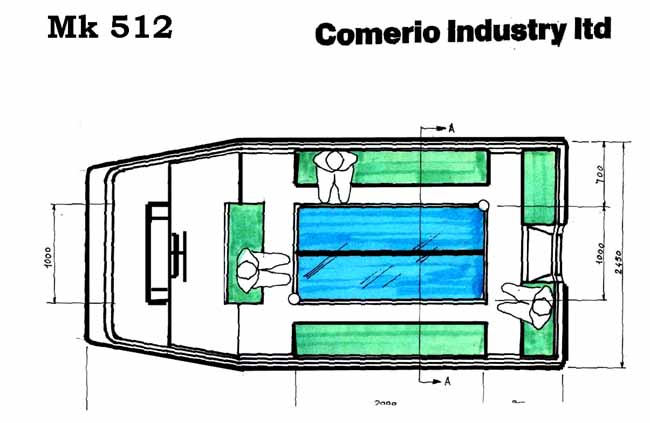

Main deck view - Vue du pont principal - Vista ponte principale -

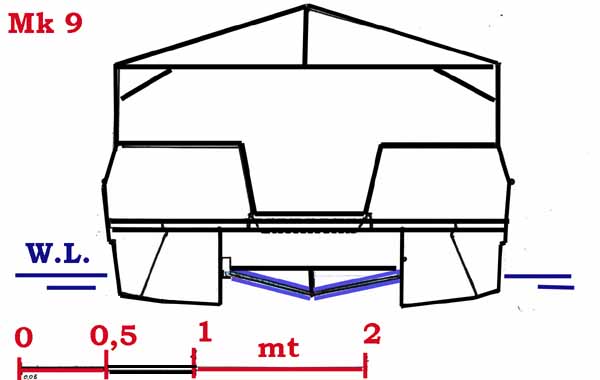

Cross Section - Section Transversale - Sezione Trasversale-
ACQUAVISION MK 4 - " mini "
seats: 10 -
Recommended engine: 15 HP Petrol or Electric
Type "A" - Steel grade hull.=
Type "B" - Aluminium grade hull

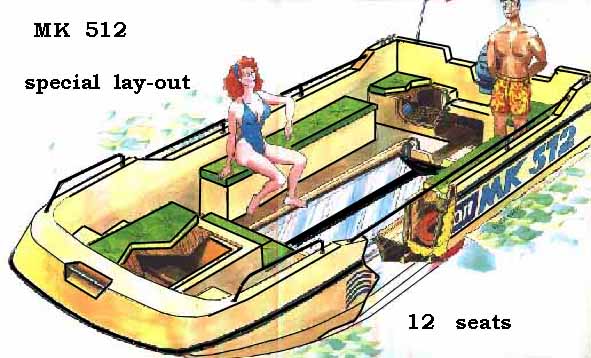

ACQUAVISION MK 512
seats: 12 -
Engine/s : outboard
ACQUAVISION MK 7.50
seats: 20 -
Engine/s: outboard
ACQUAVISION MK 9 mt
seats: 27 -
Engine/s : outbard or Sterndrive
ACQUAVISION MK 10
seats: 30 -
Engine: Sterndrive Diesel
ACQUAVISION MK 13.50
seats: 40 -
Engine: Sterndrive Diesel
ACQUAVISION MK 16.50
seats: 52 -
Engine: Sterndrive Diesel
ACQUAVISION MK 25/P
seats: 70 + 70 Upperdeck -
Engines: inboard diesel
ACQUAVISION MK 30 TRISTAR
seats: 150 + 150 Upperdeck + 18 Sundeck -
Engines: n.2 x 540 HP inboard
ACQUAVISION MK 35 TRISTAR
seats: 150 seats + 150 Upperdeck + 30 Sundeck -
Engines: n.2 x 540 HP inboard
