ACQUAVISION MK 7,50 - 23' -

ref:aq750-01.html - May 2000. cod. 17.1

Updated: 7 Sept. 2009

MAIN SPECIFICATION - SPECIFICATIONS - CARATTERISTICHE GENERALI

- Fishwatching boat for night & day use -
- Barca per la visione subacquea per uso diurno e notturno.-
- Glass-bottom catamaran -
- Catamarano con fondo di cristallo -
TRIHEDRAL-HULL

1 - Full lenght / Longueur hors tout / Lunghezza f.t....(L.O.A.). mt 7,50 -25'-

2 - Hull lenght / Longueur de la coque / Lunghezza scafo ....mt 7,00 -23'

3 - Beam / Largeur / Larghezza ........................................mt 3,0

4 - CRYSTAL: dimensions /dimensioni..............................mt 2,50 x 1,0

5 - Passenger load / Charge max. de personnes / Passeggeri...n. 20

6a- Construction material :....................marine steel or aluminium
6b- Material de construction:..................acier marine ou aluminium
6c- Materiale di costruzione:..................acciaio oppure Alluminio

7 - Colour / Coleur / Colore - Standard - :..... White / Blanc / Bianco

8 - Keel / Carène / Carena : ........................Trimaran - Trimarano

9 - Fuel Tank / Réservoir carburant / Serbatoio carburante:
not included - pas compris - non compreso -

10 -Max Engine/s Power - Motorisation max. - Massima motorizzazione:
n. 2 x HP 25 outboard. Extra Long

11 - Crew / Equipage / Equipaggio:......................n. 1

PROULSIONE A GPL - LPG PROPULSION KIT - GPL MARINE

Testo in Italiano: clicca su:
Il kit a GPL

English text: click on:
LPG System for boat engines

French Text - Cliquez:
Le GPL marine pour la plaisance et les utilisations professionnelles

Sketch available - Plans Generaux - Piani Generali -

cod.17

Picture - View -on - bow

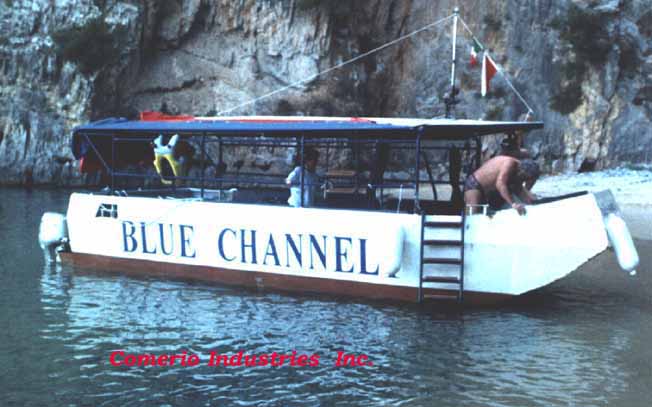

Picture - Lateral View

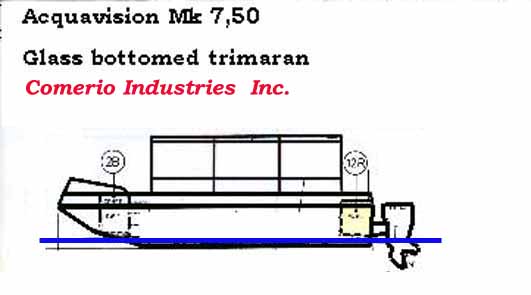

Midship section - section longitudinale - Sezione di maestra

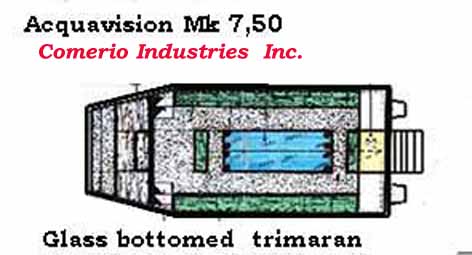

Main deck view - Vue du pont principal - Vista ponte principale -

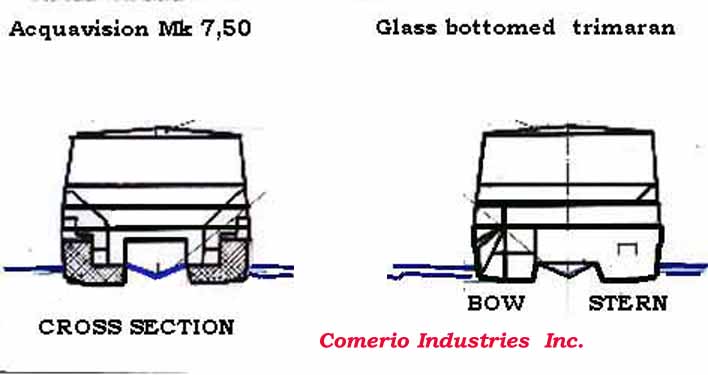

Cross Section - Section Transversale - Sezione Trasversale-

Mk 7,50 passenger transport cat

 - Technical specification
The Acquavision Production List

SINGLE DECK

ACQUAVISION MK 4 - " mini "
seats: 10 -
Recommended engine: 15 HP Petrol or Electric
Type "A" - Steel grade hull.=
Type "B" - Aluminium grade hull

ACQUAVISION MK 512
seats: 12 -
Engine/s : outboard

ACQUAVISION MK 7.50
seats: 20 -
Engine/s: outboard

ACQUAVISION MK 9 mt
seats: 27 -
Engine/s : outbard or Sterndrive

ACQUAVISION MK 10
seats: 30 -
Engine: Sterndrive Diesel

ACQUAVISION MK 13.50
seats: 40 -
Engine: Sterndrive Diesel

ACQUAVISION MK 16.50
seats: 52 -
Engine: Sterndrive Diesel

DOUBLE DECK

ACQUAVISION MK 16.50/P
seats: 50 + 30 Upperdeck -
Engine: Sterndrive Diesel

ACQUAVISION MK 25/P
seats: 70 + 70 Upperdeck -
Engines: inboard diesel

TRIPLE DECK

ACQUAVISION MK 25 TRISTAR
seats: 120 + 120 Upperdeck + 18 Sundeck -
Engines: n. 2 x 540 HP inboard

ACQUAVISION MK 30 TRISTAR
seats: 150 + 150 Upperdeck + 18 Sundeck -
Engines: n.2 x 540 HP inboard

ACQUAVISION MK 35 TRISTAR
seats: 150 seats + 150 Upperdeck + 30 Sundeck -
Engines: n.2 x 540 HP inboard
