ref:aq250-01.html - Amended 11 Luglio 2007 cod. 17
1 - Full length / Longueur hors tout / Lunghezza f.t....(L.O.A.). mt 26,50 - 88'-
2 - Hull length / Longueur de la coque / Lunghezza scafo ....mt 25 - 83'-
3 - Beam / Largeur / Larghezza ...........................: mt 8,50 - 28' -
4 - Draft - Pescaggio : mt 2,40 / 8' fully loaded - a pieno carico.
5 - Bordo libero - freeboard (summer /winter) : mt 1,80 - 6' -
6.1 - CRYSTAL: dimensions /dimensioni..Total vision surface dimension..sqmt 36 - 387 sqfeet -
6.2 - Crystal: extra-strong type - 30 mm - 1" 1/4 -
7 - Passenger / Charge max. de personnes /
Passeggeri...n. 120 + 120 -
7a- Construction material :....................marine steel.
7b- Material de construction:..................acier marine.
7c- Materiale di costruzione:..................acciaio.
8 - Gross tonnage :...................... approx. 110 Metric Tons.
9 - Colour / Coleur / Colore - Standard - :..... White / Blanc / Bianco
10 - Keel / Carène / Carena : .............Trimaran - Trimarano
11 - Fuel Tank / Réservoir carburant / Serbatoio carburante:
Tot.: 5,000 lt - 1,322 US Gallon -
12 - Recommended Engine - Motorisation - Motorizzazione prevista:
n. 2 x HP 540 CATERPILLAR or equivalent.
12.1 - Bow-thrusters: No. 2 x 9 Kw each.
12.2 - Power generator: 2 x 80 Kw main units.
12.3 - Power generator: 2 x 25 Kw secondary units.
13 - Crew / Equipage / Equipaggio:......................n. 5.
14.1 - Cruising speed - velocita' in visione : 0,5 knots.
14.2 - Max speed - velocita' massima : 9 knots 50% passengers.
15.1- Ship register: registro navale: RINA -
15.2- Class: * 100 -A-1.1-
16 - Authorized use : in relation to the route.
17 - Standard emergency equipment: all included.
18 - White water tank - serbatoio acque chiare : 1,000 lt - 264 US gallon.
19 - Black water tank - serbatoio acque scure: 1,000 lt - 264 US gallon.
20 - Stern side diver's platform - piattaforma di poppa: mt 7 x 2,20 - 23' x 7' 1/4
21 - Canopy - tendalino : PVC - White / blue : included.
22 - W.C. - included -
23 - Galley - cucinino : included - incluso.
24 - Closed whellhouse - included -
25- ACCOMODATION by request -.
25.1 - Restaurant - Disco bar - self-service - casino -
25.2 - Crew accomodation: by request.
Main deck view - Vue du pont principal - Vista ponte principale -
Vista da prora e da poppa - View-on-bow , View-on Stern

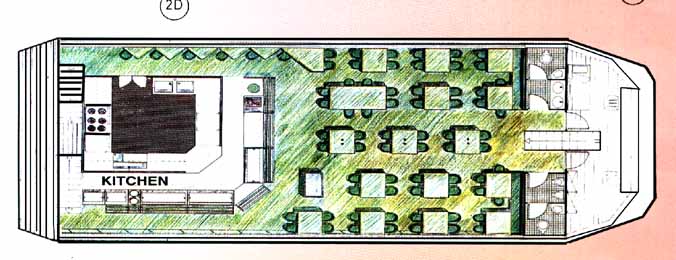

Ponte superiore - upper deck- - Kitchen and restaurant -
Shipowner - office - crew berth - by request cabina armatore - ufficio - equipaggio. a richiesta
Sun deck - Ice cream shop - Ponte sole - sistamazione gelateria
ACQUAVISION MK 4 - " mini "
seats: 10 -
Recommended engine: 15 HP Petrol or Electric
Type "A" - Steel grade hull.=
Type "B" - Aluminium grade hull
ACQUAVISION MK 512
seats: 12 -
Engine/s : outboard
ACQUAVISION MK 7.50
seats: 20 -
Engine/s: outboard
ACQUAVISION MK 9 mt
seats: 27 -
Engine/s : outbard or Sterndrive
ACQUAVISION MK 10
seats: 30 -
Engine: Sterndrive Diesel
ACQUAVISION MK 13.50
seats: 40 -
Engine: Sterndrive Diesel
ACQUAVISION MK 16.50
seats: 52 -
Engine: Sterndrive Diesel
ACQUAVISION MK 25/P
seats: 70 + 70 Upperdeck -
Engines: inboard diesel
ACQUAVISION MK 30 TRISTAR
seats: 150 + 150 Upperdeck + 18 Sundeck -
Engines: n.2 x 540 HP inboard
ACQUAVISION MK 35 TRISTAR
seats: 150 seats + 150 Upperdeck + 30 Sundeck -
Engines: n.2 x 540 HP inboard
