ref. : aq4-01.html - Amended 11 Luglio 2007 - cod. 17 / 2007
1 - Full length / Longueur hors tout / Lunghezza f.t..(L.O.A.)... mt 4,00 - 12'
2 - Beam / Largeur / Larghezza ........................................mt 2,30 -
3 - CRYSTAL: dimensions /dimensioni:..............mt 2 x 1 -
4 - Passenger load / Charge max. de personnes
/ Passeggeri...n. 10
5 - Seats : n. 10 folding seats - 10 sedili reclinabili -
6- Construction material :
Type "A" : marine steel / acier marine / acciaio marini
Type "B" : marine grade aluminium - alluminio
7 - Colour / Coleur / Colore - Standard - :..... White / Blanc / Bianco
8 - Keel / Carène / Carena : ........................Trimaran - Trimarano
9 - Fuel Tank / Réservoir carburant / Serbatoio carburante:
not included - pas compris - non compreso -
10 -Max Engine/s Power - Motorisation max. - Massima motorizzazione:
n. 2 x HP 15 outboard. Extra Long
Electric propulsion: by request.
11 - Canopy - Tendalino : White & Blue / Bianco e Blu : included - incluso.

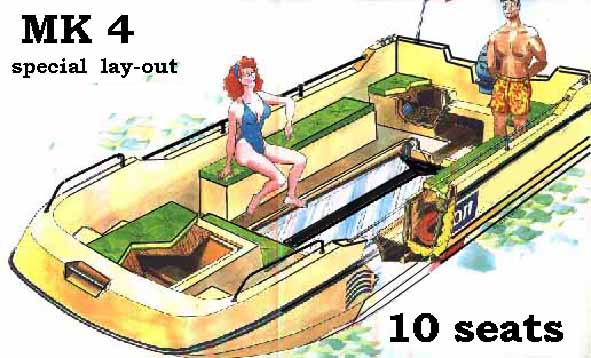

3 D colour sketch - special lay-out:
view and section

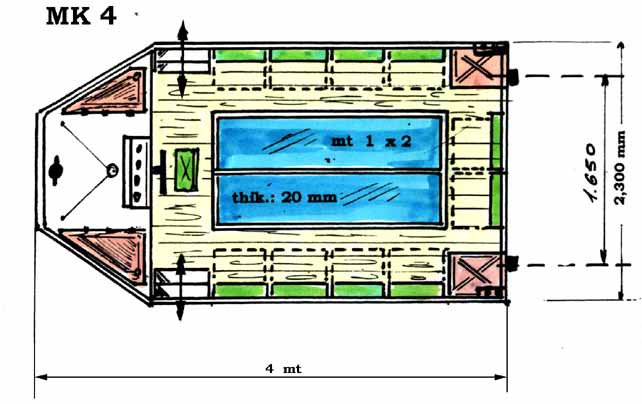

Main deck view - Vue du pont principal -
Vista ponte principale -

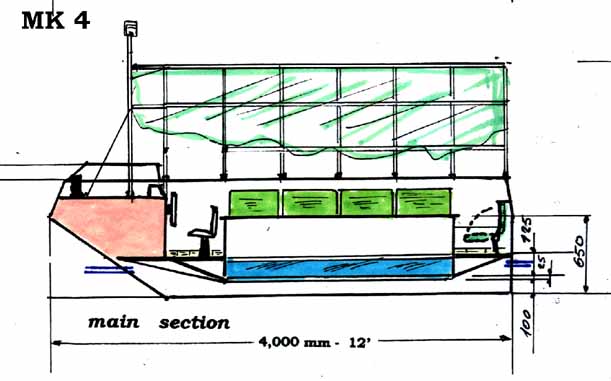

Cross Section - Section Transversale - Sezione
Trasversale-

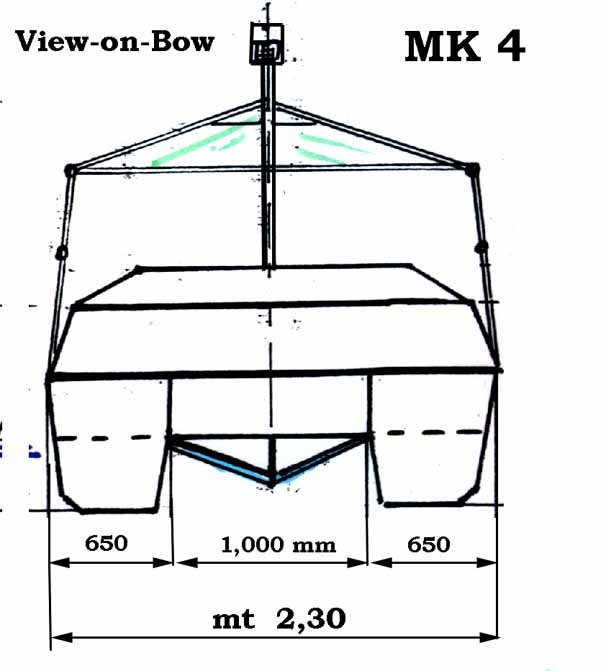

Picture - View on bow
ACQUAVISION MK 4 - " mini "
seats: 10 -
Recommended engine: 15 HP Petrol or Electric
Type "A" - Steel grade hull.=
Type "B" - Aluminium grade hull
ACQUAVISION MK 512
seats: 12 -
Engine/s : outboard
ACQUAVISION MK 7.50
seats: 20 -
Engine/s: outboard
ACQUAVISION MK 9 mt
seats: 27 -
Engine/s : outbard or Sterndrive
ACQUAVISION MK 10
seats: 30 -
Engine: Sterndrive Diesel
ACQUAVISION MK 13.50
seats: 40 -
Engine: Sterndrive Diesel
ACQUAVISION MK 16.50
seats: 52 -
Engine: Sterndrive Diesel
ACQUAVISION MK 25/P
seats: 70 + 70 Upperdeck -
Engines: inboard diesel
ACQUAVISION MK 30 TRISTAR
seats: 150 + 150 Upperdeck + 18 Sundeck -
Engines: n.2 x 540 HP inboard
ACQUAVISION MK 35 TRISTAR
seats: 150 seats + 150 Upperdeck + 30 Sundeck -
Engines: n.2 x 540 HP inboard
